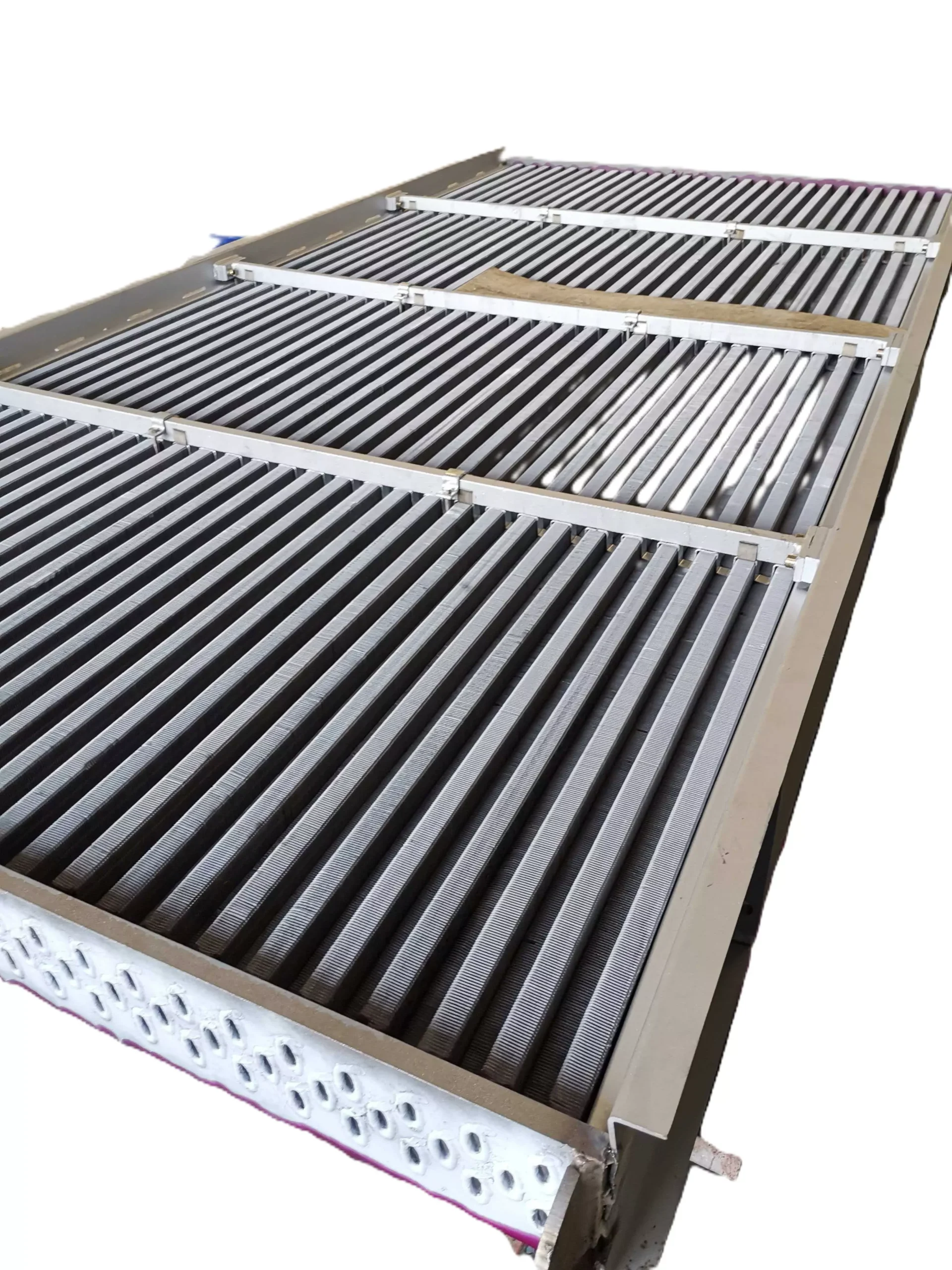

Elliptical Tube Rectangular Fin Tube Condenser
Elliptical Tube Rectangular Fin Tube Condenser Advantages:
Centered on an elliptical base tube + rectangular fin structure, this condenser has two core advantages over the conventional round tube fin structure:
High heat transfer efficiency
The streamlined design of the elliptical tube reduces flow-around vortices and delays the flow separation point, improving the air-side heat transfer efficiency by 20%~50% compared with round tubes. Rectangular fins increase the effective contact area and adapt to turbulence enhancement, resulting in a significantly higher heat transfer rate.
Low resistance & energy saving
Airflow resistance is reduced by 20%~50%, allowing the use of lower-power fans and cutting system operating energy consumption. Elliptical tubes feature high mechanical strength and good corrosion resistance, making them suitable for complex industrial working conditions.
Core components:
Elliptical rectangular finned tube bundles, tube sheets/end covers, shell, distributor/header, fan assembly (air-cooled type), spray/water circulation system (evaporative type), and electric control system.
